Mini BASIC Programmable Embedded Module: EM500

Available Discounts
EM500 Quantity Discount
  • buy 100 to 499, save US$6.05 each
  • buy 500 to 999, save US$8.20 each
  • buy 1000 to 1999, save US$9.50 each
Item #: EM500
Price: US$29.00

Quantity:
More
Less

Add to Wishlist Add to Cart

Description

The EM500 is a miniature stand-alone BASIC-programmable embedded module designed to be used in combination with a standard LED/magnetics RJ45 jack. The combined footprint of the EM500 and standard RJ45 jack is only 28.5x18.5mm.

The modules hardware mix, which includes 10/100BaseT ethernet, a serial port, and 8 I/O lines, has been carefully tailored to address the basic needs of lightweight network-enabled devices.

Compact dimensions, space-saving "vertial slice" form factor, low power consumption, and innovative dual-function LED control lines make the module an excellent fit for miniature, cost effective designs.

Soon, the EM500 will also support Wi-Fi communications (using the GA1000 Wi-Fi module add-on), as well as external LCD, keypad, and flash disk (via an SPI flash IC).

The EM500 can be ordered stand-alone or in combination with an industry-standard RJ45 jack.

The EM500EV evaluation board is highly recommended to expedite your development.





  • Based on a second-generation ASIC (T2000)
  • 10/100BaseT, auto-MDIX ethernet port (no magnetics)
  • One serial port (CMOS level)
  • Upt ot 460800bps baud rates
  • None/even/odd/mark/space parity modes
  • 7/8 bits/character modes
  • Full duplex mode with optional flow control
  • Half-duplex mode with direction control
  • Encoding and decoding of Wiegand and clock/data streams
  • 512KB flash memory for firmware application
  • 200 bytes of EEPROM space for data storage
  • 8 general-purpose I/O lines (including 2 interrupt lines)
  • Control lines for 2 external dual function status LED's
  • Additional control line for dedicated Ethernet link LED
  • External reset source required
  • Power: 260mA @3.3V (100BaseT mode)
  • Compact "vertical slice" construction

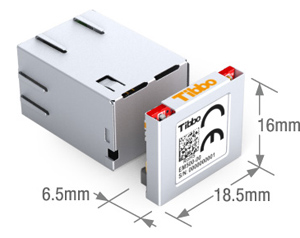

  • Miniature dimensions: 18.5x16.0x6.5mm
  • Firmware upgradeable through the serial port or over the network




Future enhancements:

  • Optional Wi-Fi interface (for the GA1000 wi-Fi add-on module)
  • Flash disk (will require external SPI flash IC
  • Support for external LCD and keypad




Free Tibbo Integrated Development Environment (TIDE) software is included with all Tibbo's programmable devices. TIDE is a modern code editor suppoting syntax highlighting, context help, code hinting and auto completion. Debug with ease with the built-in debugger which does not rely on any special hardware like an ICE machine or a JTAG board. Simply connect your Tibbo device  to the ethernet, select it in the IDE and you are all set !
